Isolating switching amplifier, 1-channel, ATEX, IECEx, cUL, cFM, CSA, TR CU, NEPSI, KOSHA, TIIS, CCOE, INMETRO, Installation in zone 2, 2 transistor outputs, short-circuit proof, potential-free and reverse-polarity protected, Common alarm output, Output mode adjustable (NO/NC mode), Input circuits monitored for wire-break/short-circuit (ON/OFF switchable), SIL 2, Complete galvanic isolation, Input reverse-polarity protected
-
SKU4047101119671
-
Manufacturer code7541230
-
Rated supply voltage at DC20 - 125 V
-
Number of inputs, according to NAMUR1
-
Switching voltage30 V
-
Switching current0.05 A
-
Switching frequency5000 Hz
-
SIL according to IEC 615082
-

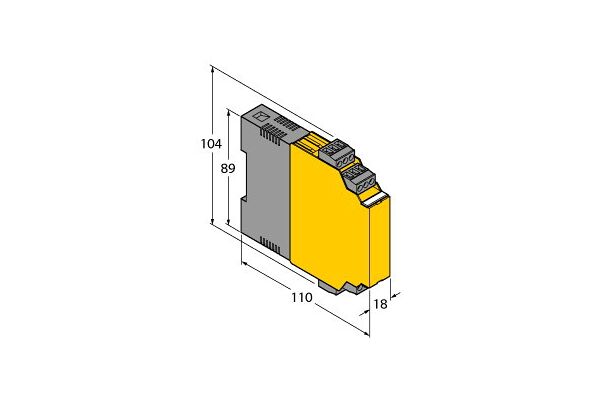

Width18 mm
-
Height110 mm
-
Power consumption3 VA
-
Operation temperature-25 - 70 °C
-
Type of electric connectionScrew connection
-
Mounting methodSnap mounting support rail
-
Depth104 mm
-
Degree of protection (IP)IP20
-
Rated supply voltage at AC20 - 250 V
-
Rated operation frequency40 - 70 Hz
-
Manufacturer Turck
-
